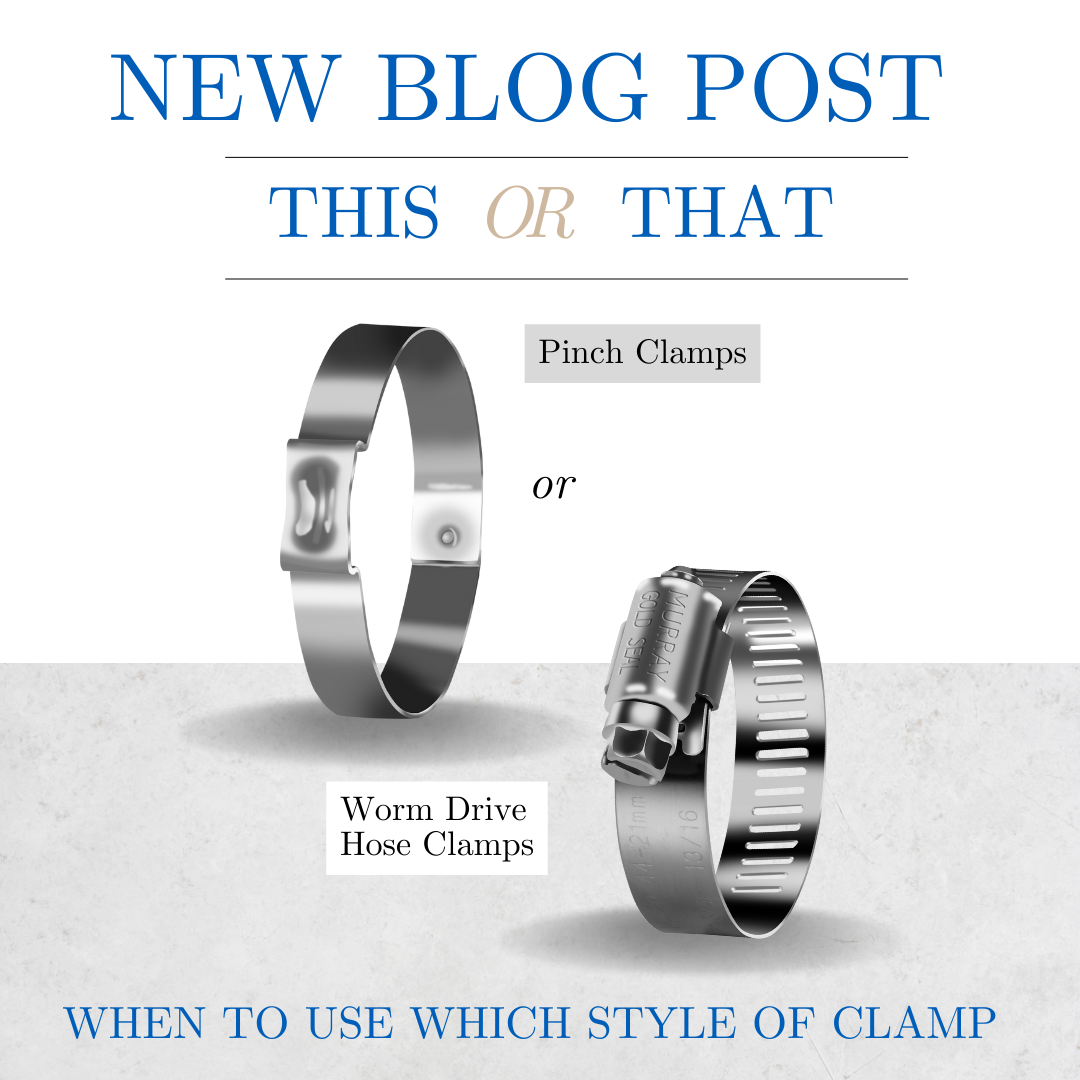

Pinch Clamp or Worm Drive Hose Clamp; when to use which style of clamp.

Do you need help choosing which style of clamp to use for your application? Read this blog to learn more about the key differences between pinch clamps and worm drive clamps which will give you the required information to make an informed decision.

1. Design and Mechanism
• Pinch Clamp:
◦ Features a single-piece band with an ear or tab that is crimped using a special tool to tighten the clamp.
◦ Provides a permanent, non-adjustable connection after installation.
• Worm Drive Clamp:
◦ Consists of a band with a screw housing and a worm gear mechanism.
◦ Tightened or loosened by turning the screw, making it adjustable and reusable.

2. Adjustability
• Pinch Clamp:
◦ Non-adjustable after crimping. To make adjustments, the clamp must be removed and replaced.
• Worm Drive Clamp:
◦ Fully adjustable, allowing for tightening or loosening without removing the clamp. Suitable for connections that may need periodic maintenance or adjustments.

3. Installation Tools
• Pinch Clamp:
◦ Requires a specialized crimping tool to install.
• Worm Drive Clamp:
◦ Can be installed using simple tools like a flathead screwdriver, socket wrench, or hex key.

4. Strength and Durability
• Pinch Clamp:
◦ Often provides a more uniform and reliable seal, especially in high-pressure applications.
◦ Typically more resistant to vibration due to its solid construction.
• Worm Drive Clamp:
◦ Offers good strength but may lose tightness over time in high-vibration conditions unless regularly checked and retightened.

5. Reusability
• Pinch Clamp:
◦ Designed for single-use. Once crimped, it cannot be adjusted or reused.
• Worm Drive Clamp:
◦ Reusable and can be adjusted multiple times for different applications or during maintenance.

6. Applications
• Pinch Clamp:
◦ Commonly used in applications where a permanent and secure connection is required, such as plumbing, automotive fuel lines, and pneumatic systems.
• Worm Drive Clamp:
◦ Used in a broader range of applications, including automotive, HVAC, marine, and general-purpose industrial connections where adjustability is beneficial.

7. Appearance and Aesthetics
• Pinch Clamp:
◦ Provides a cleaner and more compact look due to its minimalist design.
• Worm Drive Clamp:
◦ Bulky due to the screw housing, which may not be suitable for tight spaces or where aesthetics are a concern.

When to use which clamp:
• Choose pinch clamps for permanent, vibration-resistant connections in high-pressure or fixed systems.
• opt for worm drive clamps when adjustability, reusability, or ease of installation is a priority.
