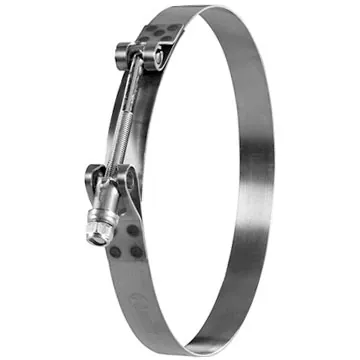

TBB/TBA

HD Stainless Steel T-Bolt Clamps

Murray’s HD T-Bolt Clamps provide leak-proof connections in applications that require increased installation torque and band load. Designed for heavy-duty applications, HD T-Bolt Bands Clamps and self-locking nuts are Zinc plated carbon steel. All other band components are manufactured from 300 series stainless steel with attention to quality craftsmanship to ensure high corrosion resistance.

HD T-Bolt Clamp Properties

Heavy-Duty T-Bolt Clamps are designed to provide high tensile strength, durability and corrosion resistance. They are made with a rounded band edge to protect soft hose materials.

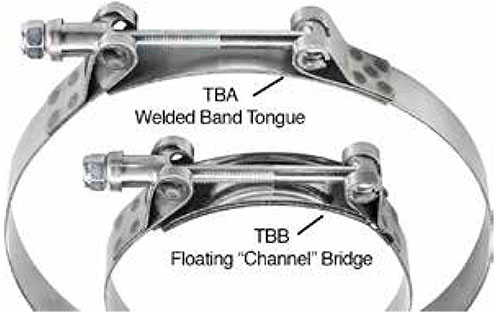

HD Stainless Steel T-Bolt Clamps are available in two styles:

TBA Series: welded band tongue under the bolt
TBB Series: Floating “channel” bridge under the bolt

Our Heavy Duty T-Bolt Clamps provide considerably heavier duty construction than standard T-Bolt band clamps. The band is wider and thicker while the bolt is longer with a larger diameter. Compare the sizes below:

Standard T-Bolt

Band width – .75 inch
Band thickness – .025 inch
Bolt diameter – .25 inch
Bolt length – 2.75 inches

HD T-Bolt

Band width – .875 inch
Band thickness – .04 inch
Bolt diameter -.3125 inch
Bolt length – 4 inches

The bolts used in our heavy-duty T-bolt clamps are bent to allow a better range along with a longer bolt length. Without this bend, the bolt would bottom out on the band.

Material Options for HD T-Bolt Clamp

Heat-treated alloy steel bolts and self-locking nuts are double-plated, clear chromate finished for high corrosion resistance. All other clamp components are 300 series bright-finished stainless steel. Bands are also available in 316 stainless steel by special order. All stainless steel used is made to AISI and other key global standards.

Requirements and Guarantees

Murray has an ISO 9001 Certification and our Quality Management System ensures you get the highest quality products order after order.

Industries We Serve

Our Heavy Duty and 300 Stainless Steel T-Bolt Clamps are typically used in agriculture, center pivot irrigation, marine, heavy-duty trucks, and severe service industrial applications.

Specifications

Clamp Size Chart

TBA Series	TBB Series	Size Number	Open Dia.	Closed Dia.	Hose Size Ref.
TBA415	TBB415	400	4.15	3.75	4"
TBA440	TBB440	425	4.4	4	4"
TBA465	TBB465	450	4.65	4.25	4-1/2"
TBA490	TBB490	475	4.9	4.5	4-1/2"
TBA503	TBB503	488	5.03	4.63	4-1/2"
TBA515	TBB515	500	5.15	4.75	5"
TBA540	TBB540	525	5.4	5	5"
TBA546	TBB546	531	5.46	5.06	5"
TBA565	TBB565	550	5.65	5.25	5-1/2"
TBA571	TBB571	556	5.71	5.31	5-1/2"
TBA590	TBB590	575	5.9	5.5	5-1/2"
TBA615	TBB615	600	6.15	5.75	5-9/16"
TBA633	TBB633	618	6.33	5.93	6"
TBA640	TBB640	625	6.4	6	6"
TBA659	TBB659	644	6.59	6.19	6"
TBA665	TBB665	650	6.65	6.25	6-1/2‚Äú
TBA671	TBB671	656	6.71	6.31	6-1/2‚Äú
TBA690	TBB690	675	6.9	6.5	6-1/2‚Äú
TBA703	TBB703	688	7.03	6.63	6-1/2‚Äú
TBA715	TBB715	700	7.15	6.75	6-5/8"
TBA721	TBB721	706	7.21	6.81	6-5/8"
TBA727	TBB727	712	7.27	6.87	6-5/8"
TBA734	TBB734	719	7.34	6.94	6-5/8"
TBA740	TBB740	725	7.4	7	6-5/8"
TBA750	TBB750	735	7.5	7.1	6-5/8"
TBA815	TBB815	800	8.15	7.75	8"
TBA859	TBB859	844	8.59	8.19	8"
TBA865	TBB865	850	8.65	8.25	8-1/2"
TBA871	TBB871	856	8.71	8.31	8-1/2"
TBA877	TBB877	862	8.77	8.37	8-1/2"
TBA885	TBB885	870	8.85	8.45	8-1/2"
TBA905	TBB905	890	9.05	8.65	8-1/2"
TBA933	TBB933	918	9.33	8.93	8-5/8"
TBA940	TBB940	925	9.4	9	8-5/8"
TBA1059	TBB1059	1044	10.59	10.19	10"
TBA1077	TBB1077	1062	10.77	10.37	10"
TBA1084	TBB1084	1069	10.84	10.44	10"
TBA1090	TBB1090	1075	10.9	10.5	10-3/4"
TBA1094	TBB1094	1079	10.94	10.54	10-3/4"
TBA1105	TBB1105	1090	11.05	10.65	10-3/4"

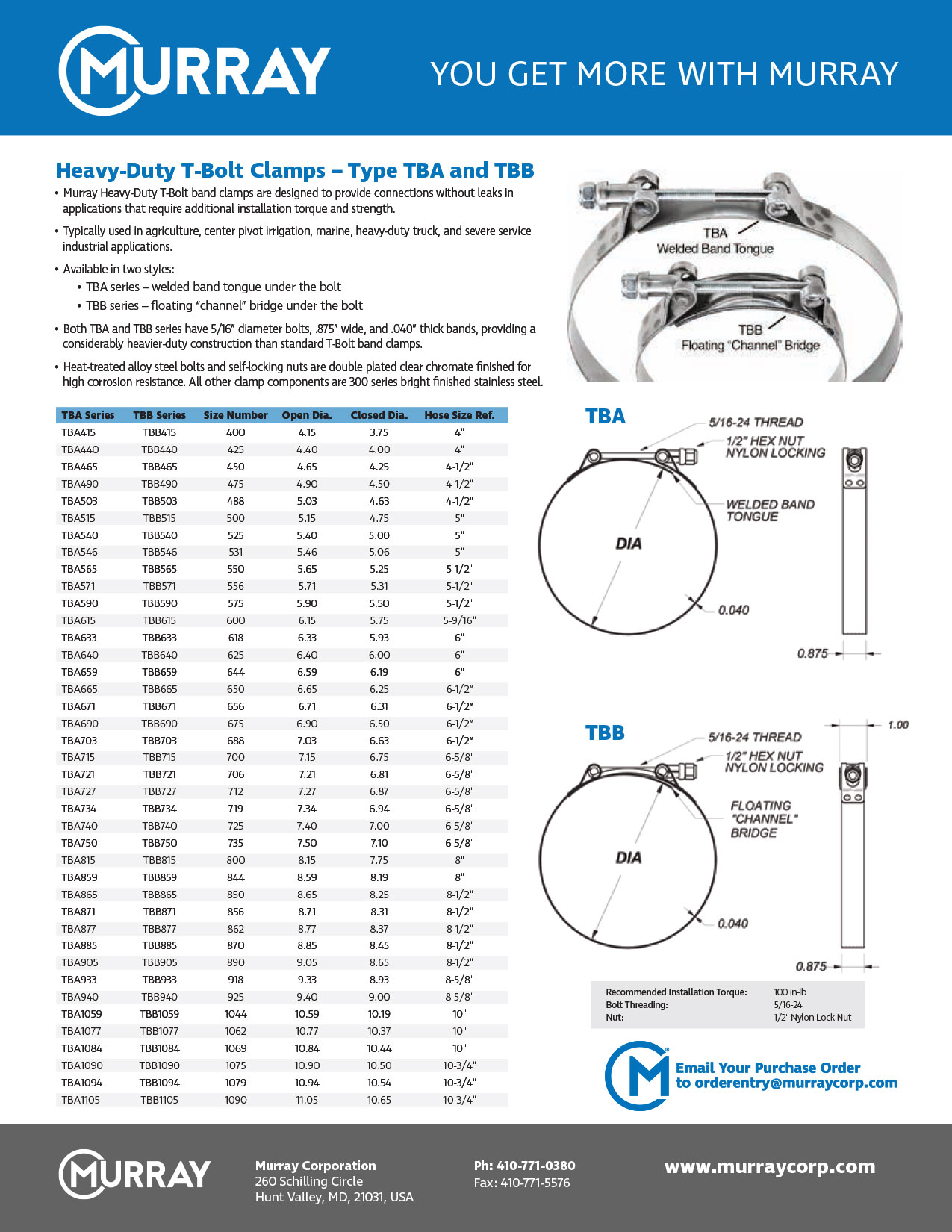

PDF Specification Sheet
