Keystone Mechanical and Stainless Pinch Clamps
KSC

Keystone Mechanical Pinch Clamp

Murray KEYSTONE clamping products offer superior strength from 100% stainless steel.
Keystone Pinch Clamps are mechanically attached and are quick and easy to install, and provide a uniform, tamper proof seal. They are widely used on both soft hose and rigid plastic pipe. You will find these clamps anywhere you connect poly pipe. Ear clamps are excellent for use in a multitude of irrigation and water supply systems, on fuel and vapor lines, to attach dust shields and air filters, for beverage supply lines, for car wash supply lines, and for securing bundles of cable. When crimping with a hand tool, Murray’s true Keystone geometry, located in the ear area, dramatically reduces miscrimps. Keystone Mechanical Pinch clamps are 100% Stainless Steel.
Common Clamping Applications:
Irrigation * Water Supply * Fuel & Vapor lines * Beverage Supply Lines * Car Wash Supply Lines * Dust Shields & Air Filters * Bundles of Cable
Specifications
Clamp Size Chart

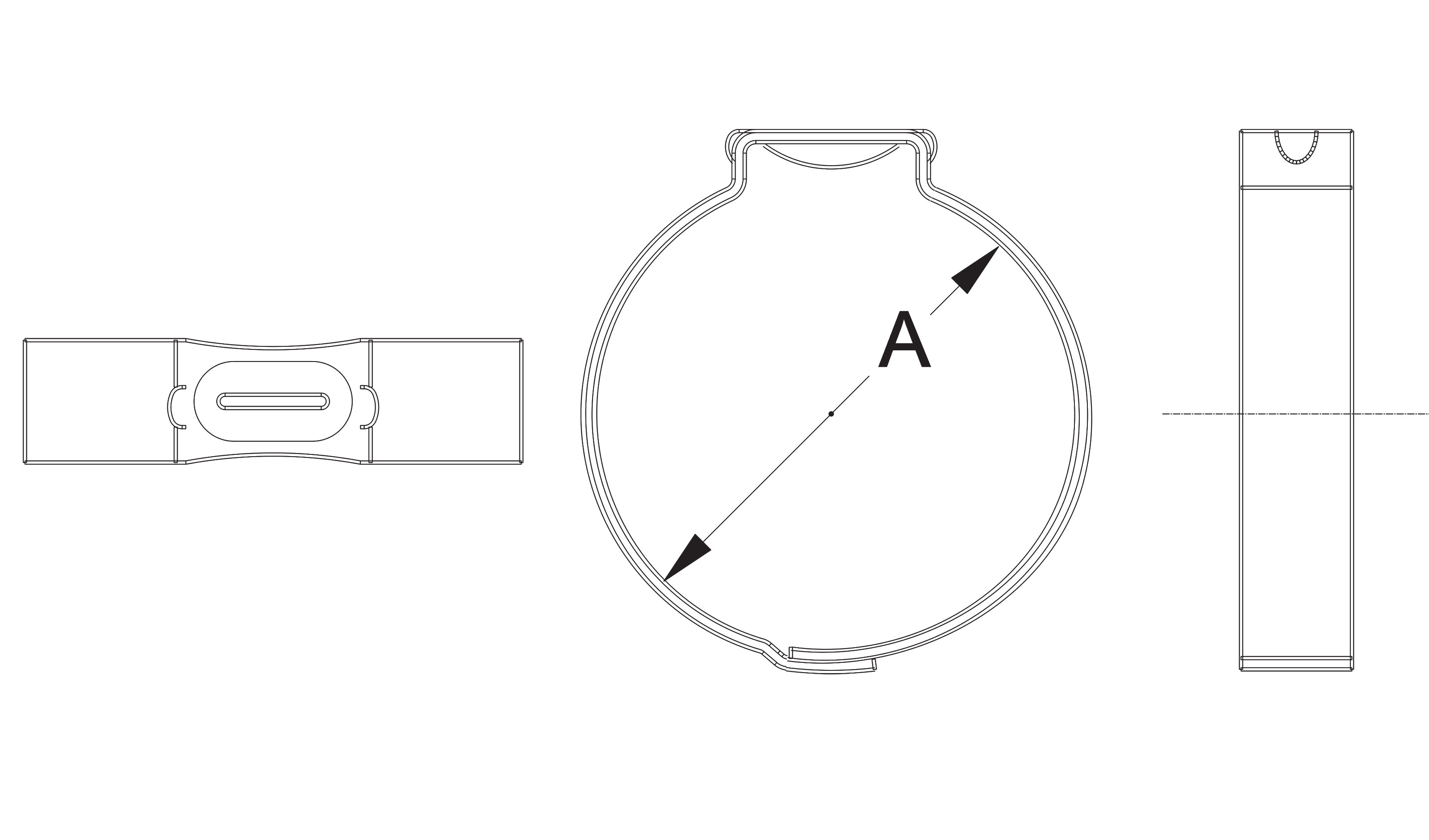

"A" Diameter Range
Part Number Metric Decimals
Open Closed Open Closed
KSC 3198* 19.8 16.6 0.78 0.655
KSC 3210* 21 17.9 0.83 0.705
KSC 3256* 25.6 22.5 1.01 0.885
KSC 3271* 27.1 24 1.07 0.945
KSC 3316* 31.6 28.5 1.245 1.12
KSC 3331* 33.1 30 1.3 1.18
KSC 3346* 34.6 31.5 1.36 1.24
KSC 3410* 41 37.9 1.615 1.49
KSC 3425* 42.5 39.4 1.675 1.55
KSC 3485* 48.5 45.5 1.91 1.787
**Popular irrigation sizes are available for immediate shipment packaged in poly bags. Please inquire on
availability of other packaging configurations and lead time for other sizes. Other sizes, shapes and materials are available upon request, subject to minimum order quantities.

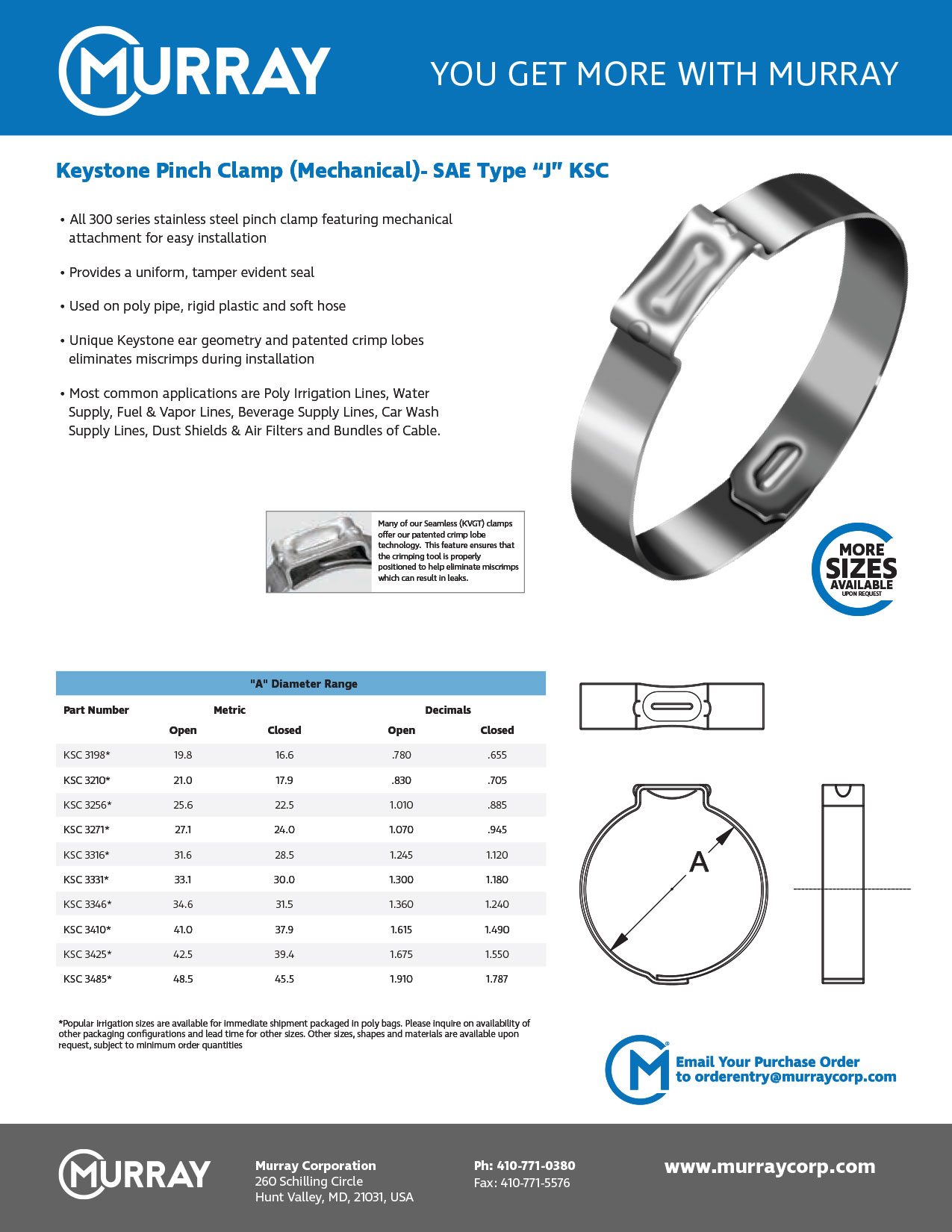

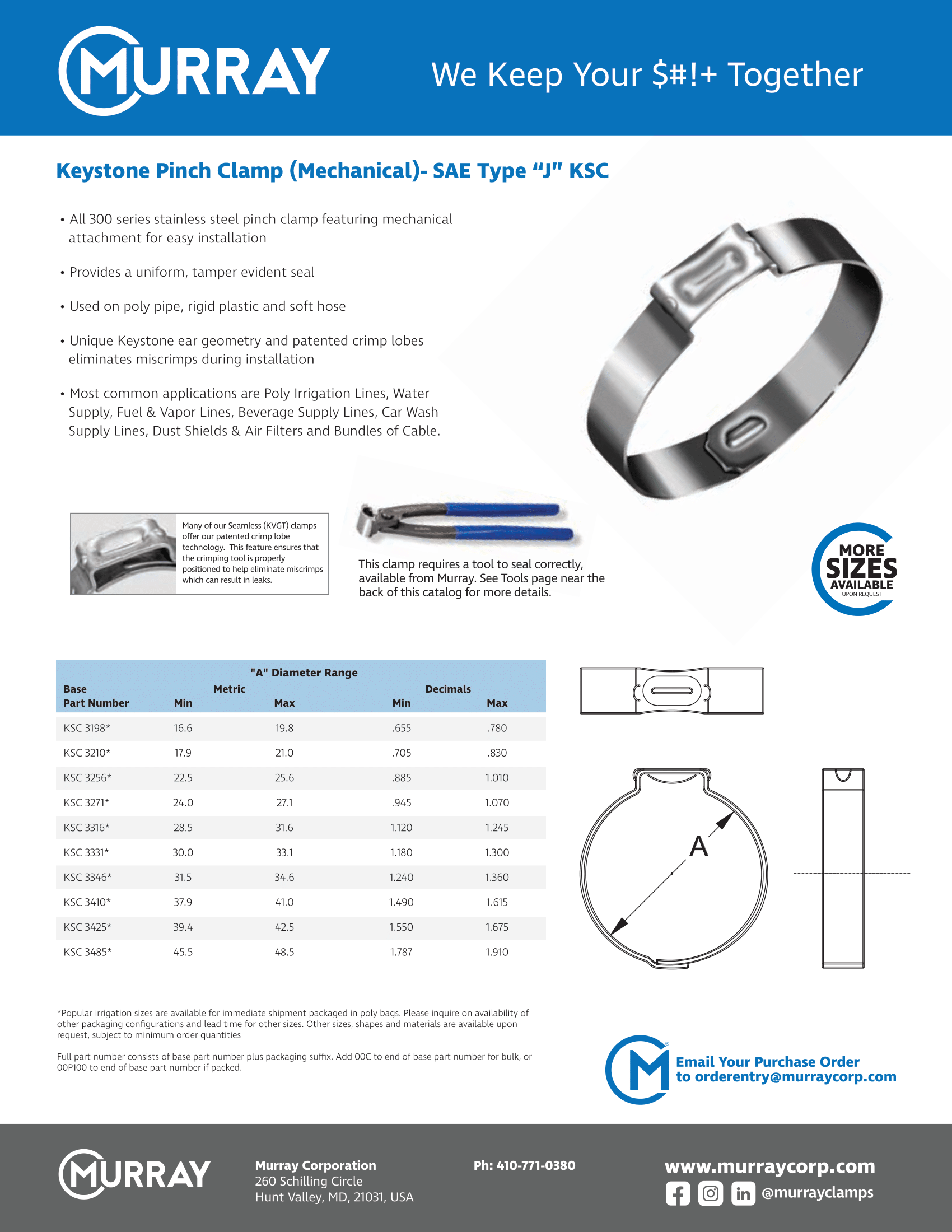

PDF Specification Sheet
