Seamless Pinch and Ear Clamps
KVGT

Seamless Pinch and Ear Clamps

Murray Corporation has been servicing customers for over 100 years and is a trusted name in industrial hose clamps.  Murray provides custom designed and manufactured hose clamps, custom plastic injection molded parts and custom metal stamped parts to OEMs, Retailers, and Distributors, with production and inventory in many locations around the world including the United States, China, Canada, India, UK, and Israel.

When it comes to our seamless and ear pinch clamps, we never fail to bring our customers a product that exceeds expectations. Learn more about our durable products and how we can serve you.
Seamless Pinch Clamp Properties

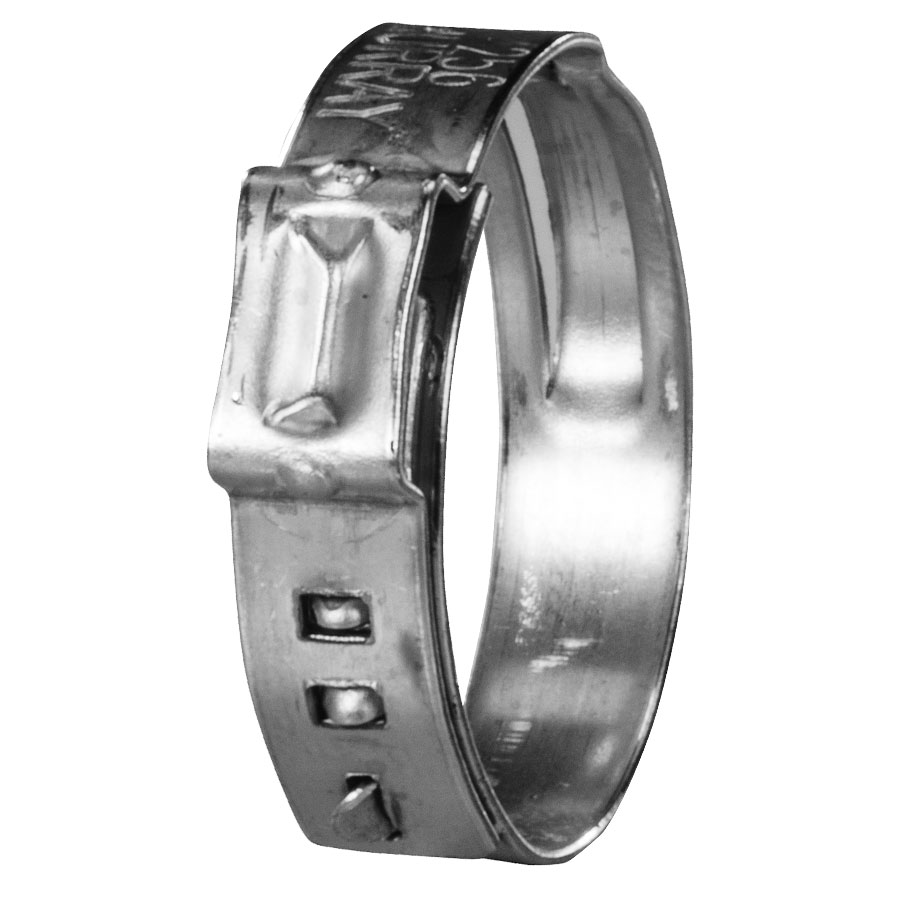

These “Tongue and Groove” clamps offer 360° seamless fastening. Due to their seamless design and uniform compression sealing, these clamps are often used in They are perfect for poly and braided tubing.

Murray makes its seamless pinch clamps in 304 stainless steel providing a high level of corrosion resistance,  and a versatile clamp that is suitable for many applications such as chemical processing, food processing, household applications as well as uses in the automotive industry.  Murray Corporation also serves the beverage, automotive, marine, motorcycle, irrigation and agricultural, and the heavy-duty truck industries.
Requirements and Guarantees
Murray has attained ISO 9001:2015 Certification and our Quality Management System ensures you get the highest quality products consistently.
What Makes Murray Corporation Different?
Our products and our service help you keep your $#!+ together.   Our parts are designed, engineered, and produced to be the best in the industry so your connections will stay together.  And you won’t lose your mind when you need parts on time, every time, and responsive service, we guarantee it.  If you join our Sure Ship Sure Stock Guarantee Program, you’ll never run out of parts or have to wait for your parts.   Learn more about our program.
More sizes available. Please contact us for more information.

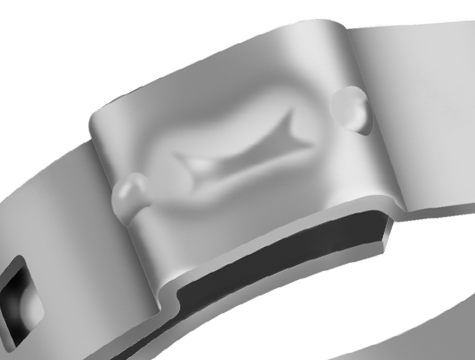

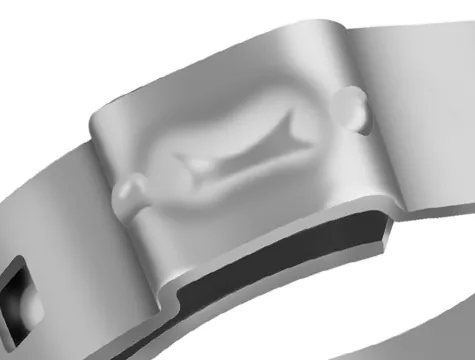

Many of our Seamless (KVGT) clamps use our patented crimp lobe technology. This feature ensures that the crimping tool is properly positioned to help eliminate miscrimps, which can result in leaks.
Specifications

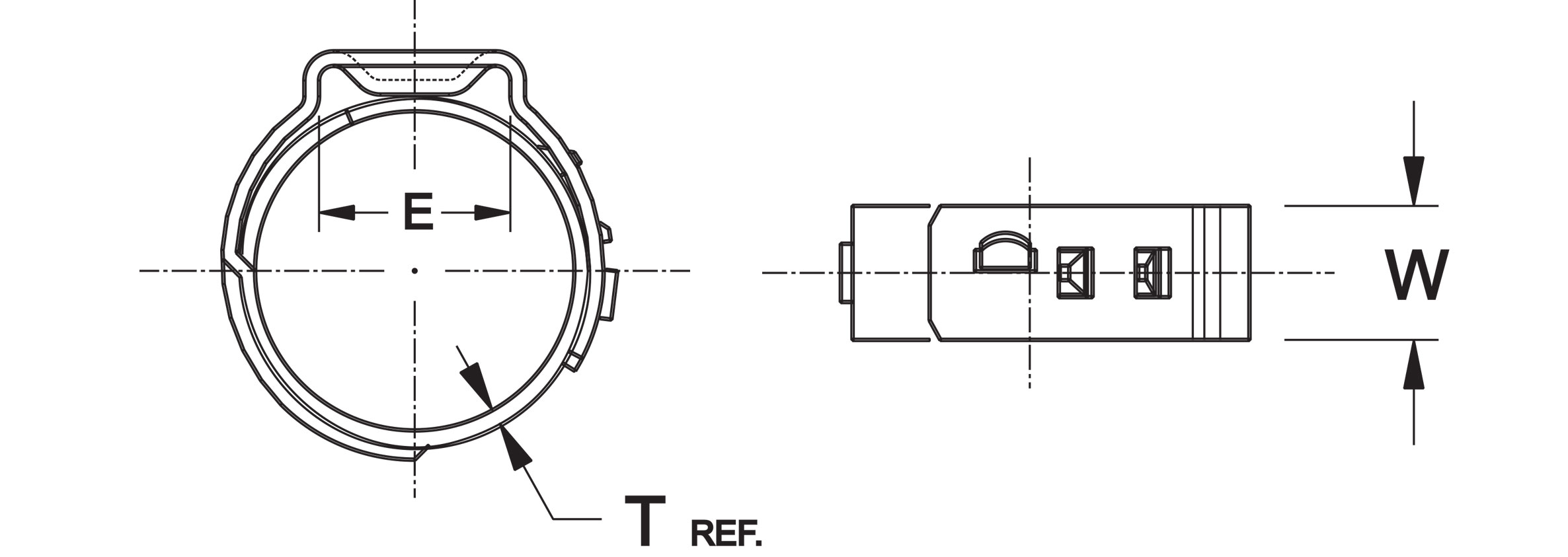

Clamp Size Chart
Part Number Size Width (W) Thickness (T) Ear Width(e) Ref Open Dia. Closed Dia.
KVGT 5065 6.5mm 5.0mm 0.5mm 4.0mm 6.5mm 5.3mm
KVGT 5070 7.0mm 5.0mm 0.5mm 4.0mm 7.0mm 5.8mm
KVGT 5080 8.0mm 5.0mm 0.5mm 4.0mm 8.0mm 6.8mm
KVGT 5087 8.7mm 5.0mm 0.5mm 5.5mm 8.7mm 7.0mm
KVGT 5095 9.5mm 5.0mm 0.5mm 5.5mm 9.5mm 7.8mm
KVGT 5100 10.0mm 5.0mm 0.5mm 5.5mm 10.0mm 8.3mm
KVGT 5105 10.5mm 5.0mm 0.5mm 5.5mm 10.5mm 8.8mm
KVGT 5109 10.9mm 5.0mm 0.5mm 5.5mm 10.9mm 9.2mm
KVGT 5113 11.3mm 5.0mm 0.5mm 5.5mm 11.3mm 9.6mm
KVGT 5118 11.8mm 5.0mm 0.5mm 5.5mm 11.8mm 10.1mm
KVGT 7123 12.3mm 5.0mm 0.6mm 8.0mm 12.3mm 9.8mm
KVGT 7128 12.8mm 7.0mm 0.6mm 8.0mm 12.8mm 10.3mm
KVGT 7133 13.3mm 7.0mm 0.6mm 8.0mm 13.3mm 10.8mm
KVGT 7138 13.8mm 7.0mm 0.6mm 8.0mm 13.8mm 11.3mm
KVGT 7140 14.0mm 7.0mm 0.6mm 8.0mm 14.0mm 11.5mm
KVGT 7145 14.5mm 7.0mm 0.6mm 8.0mm 14.5mm 12.0mm
KVGT 7157 15.7mm 7.0mm 0.6mm 8.0mm 15.7mm 13.2mm
KVGT 7162 16.2mm 7.0mm 0.6mm 8.0mm 16.2mm 13.7mm
KVGT 7164 16.4mm 7.0mm 0.6mm 8.0mm 16.4mm 13.9mm
KVGT 7170 17.0mm 7.0mm 0.6mm 8.0mm 17.0mm 14.5mm
KVGT 7185 18.5mm 7.0mm 0.6mm 10.0mm 18.5mm 16.0mm
KVGT 7192 19.2mm 7.0mm 0.6mm 10.0mm 19.2mm 16.0mm
KVGT 7198 19.8mm 7.0mm 0.6mm 10.0mm 19.8mm 16.6mm
KVGT 7210 21.0mm 7.0mm 0.6mm 10.0mm 21.0mm 17.8mm
KVGT 7226 22.6mm 7.0mm 0.6mm 10.0mm 22.6mm 19.4mm
KVGT 7235 23.5mm 7.0mm 0.6mm 10.0mm 23.5mm 20.3mm
KVGT 7241 24.1mm 7.0mm 0.6mm 10.0mm 24.1mm 20.9mm
KVGT 7271 27.1mm 7.0mm 0.6mm 10.0mm 27.1mm 23.9mm
KVGT 7286 28.6mm 7.0mm 0.6mm 10.0mm 28.6mm 25.4mm
KVGT 7308 30.8mm 7.0mm 0.6mm 10.0mm 30.8mm 27.6mm

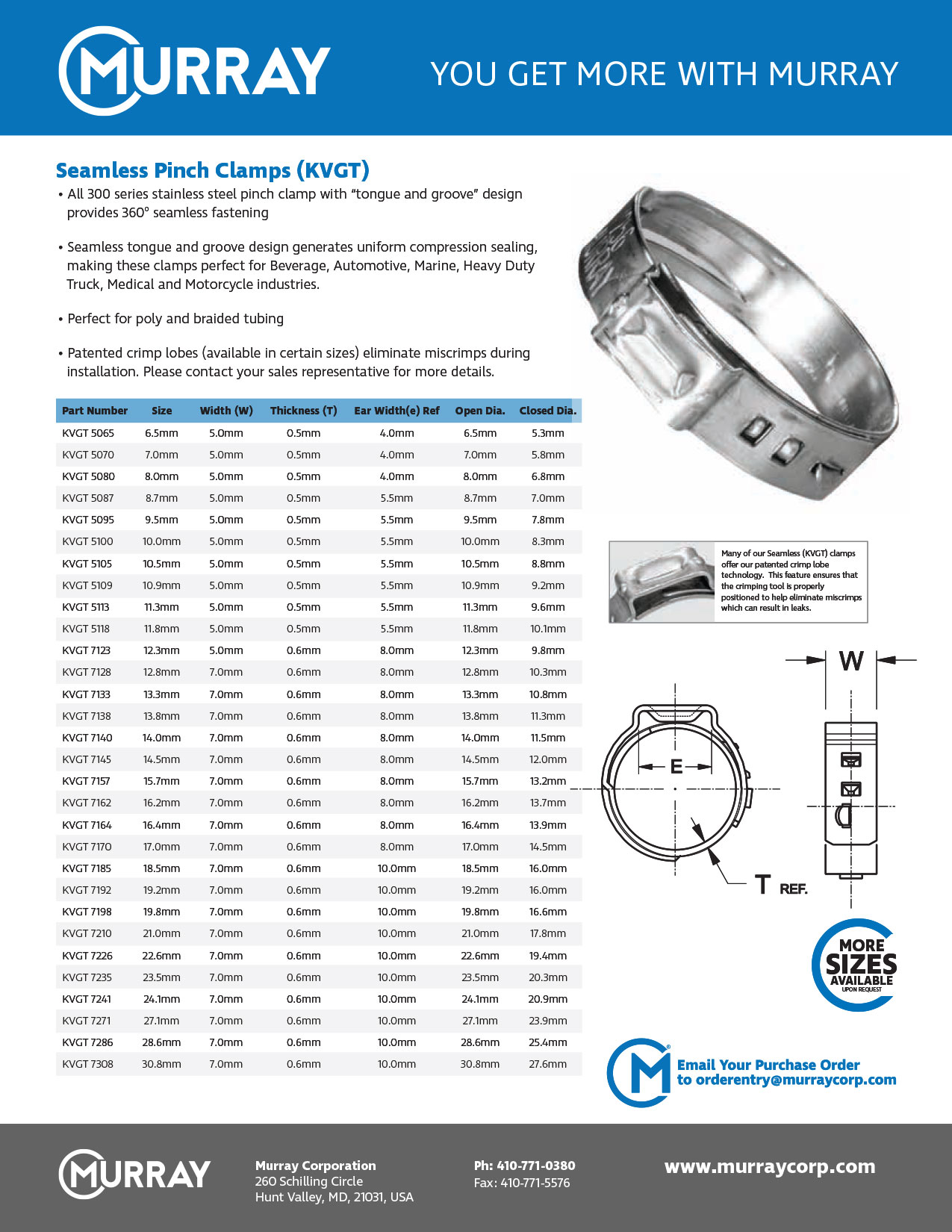

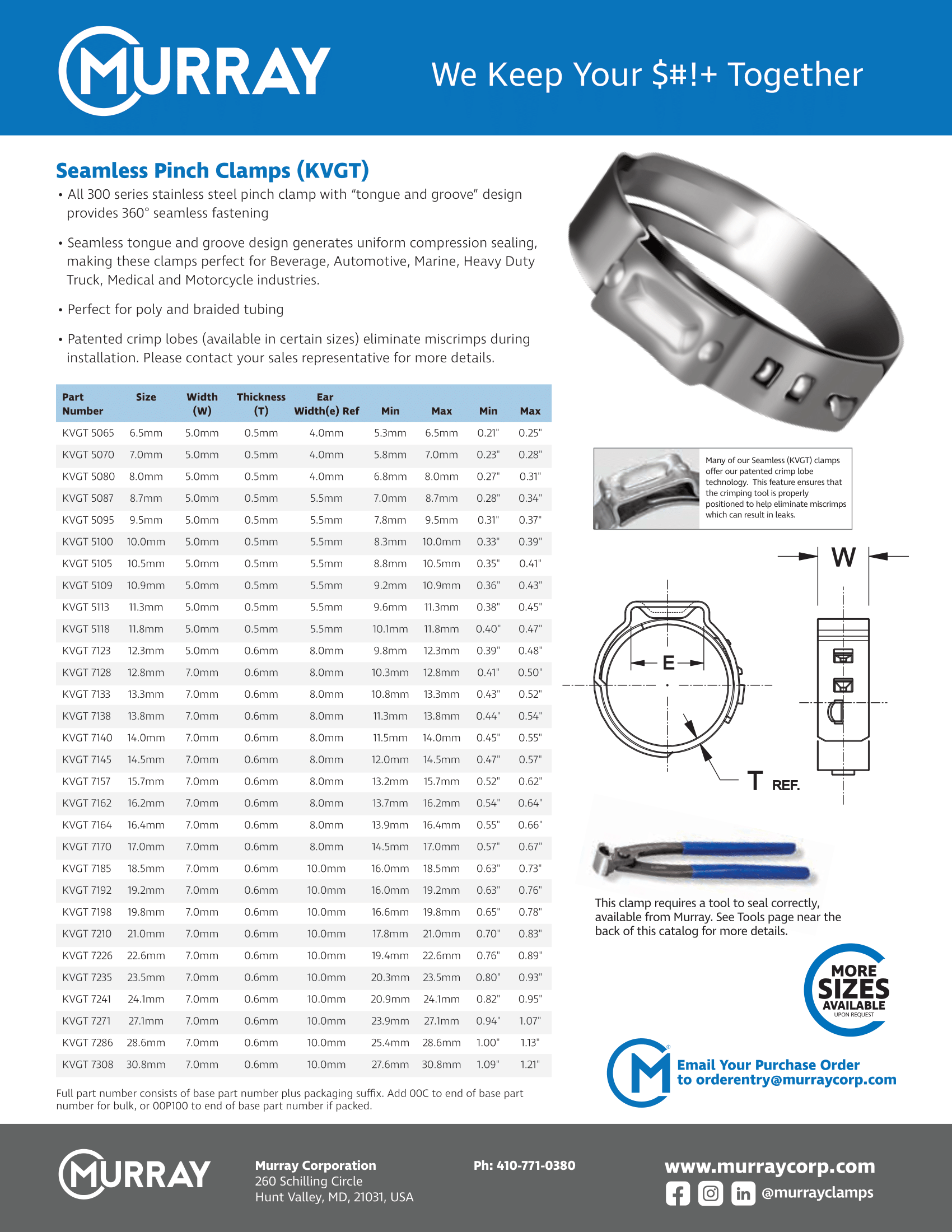

PDF Specification Sheet
